Featured image of post Getting your Dynamics CRM/Dynamics 365 for Enterprise System GDPR Ready - Part 1: Utilising Transparent Database Encryption (TDE)

Getting your Dynamics CRM/Dynamics 365 for Enterprise System GDPR Ready - Part 1: Utilising Transparent Database Encryption (TDE)

Monday may not have been my day of choice for attending an all-day session on the General Data Protection Regulation (GDPR), but it was something that I walked away from feeling more well-informed on:

If you currently work within the IT industry, then I would be very surprised if you have not yet come across GDPR or are already in the process of assessing what your organisation needs to do to prepare for it. In a nutshell, GDPR replaces existing data protection legislation within EU countries on May 25th 2018 (for the UK, this will be the Data Protection Act 1998). GDPR brings data protection guidelines firmly into the 21st century and provides a framework for organisations to apply the appropriate steps to protect individuals data. Whilst there is much within the updated guidelines that remain unchanged, there is additional emphasis towards organisations implementing the appropriate levels of security (both physical and technical), applying regular auditing processes and documentation of processes to protect against a possible data breach. For an IT professional, one of the overriding questions you should be starting to ask yourself is “What can I do to make the systems I support/implement compatible with GDPR?

Dynamics CRM/Dynamics 365 for Enterprise (CRM/D365E) is one system that is likely to be in place within businesses/organisations across the EU, and one that is arguably best placed to help meet the challenges that GDPR brings to the table. The wide berth of functionality within the application can be picked up and adapted to suit the following requirements:

  • Provide backend database encryption, to protect your key customer data in the event of a data breach.
  • Ensure that highly sensitive data categories are only accessed by relevant personnel within your organisation.
  • Enables you to implement a clear and comprehensive security model within your system, that can then clearly documented.
  • Helps you to implement a data retention policy that is line with contractual and statutory requirements.
  • Allow you to quickly and effectively respond to subject access requests, via the use of easy to generate document templates.

All of the above can be achieved using out of the box functionality within the application and, in some cases, can be more straightforwardly than you may assume.

As part of this and the next couple of week’s blog posts, I will take a look at each of the bullet points above, step by step. The aim of this is to highlight the specific elements within GDPR that each potential situation covers, how to go about implementing a solution within CRM/D365E to address each one and to provide other thoughts/considerations to better prepare yourself for GDPR. By doing so, I hope to make you aware of functionality within the application that hitherto you may never have looked at before and to explore specific use cases that provide a wider business relevance.

All posts in the series will make frequent reference to the text contained within Regulation (EU) 2016/679, available online as part of the Official Journal of the European UnionĀ - a particularly onerous and long-winded document. If you are based in the UK, you may find solace instead by reading through the ICO’s rather excellent Overview of the General Data Protection Regulation (GDPR) pages, where further clarification on key aspects of the regulation can be garnered.

Without further ado, let’s jump into the focus for this weeks post: Understanding and effectively utilising Transparent Database Encryption (TDE) within your CRM/D365E deployment.

One area within GDPR that has changed significantly is data breaches and penalties for organisations that have demonstrated a clear dereliction of their responsibilities. When assessing whether a fine is issued by your countries appropriate authority, which could number in the millions of Ā£’s or more, a determination is made whether the company has implemented sufficient technical controls to mitigate the potential impact of a data breach. Article 32 sets this out in broad terms:

Taking into account the state of the art, the costs of implementation and the nature, scope, context and purposes of processing as well as the risk of varying likelihood and severity for the rights and freedoms of natural persons, the [Data] controller and the [Data] processor shall implement appropriate technical and organisational measures to ensure a level of security appropriate to the risk, including inter alia as appropriate: (a) the pseudonymisation and encryption of personal data; (b) the ability to ensure the ongoing confidentiality, integrity, availability and resilience of processing systems and services; (c) the ability to restore the availability and access to personal data in a timely manner in the event of a physical or technical incident; (d) a process for regularly testing, assessing and evaluating the effectiveness of technical and organisational measures for ensuring the security of the processing.

It is worth noting that an assessment will be made of your businesses size, turnover etc. when a judgement is made on what “appropriate” steps your organisation has taken to mitigate their risk in this regard. Smaller businesses can, therefore, breathe a sigh of relief in not having to implement large scale and costly technical solutions within their businesses. Speaking more generally though, the importance of encryption within your organisation’s database and application systems becomes a primary concern in demonstrating GDPR compliance. It could also help you when it comes to determining whether you need to report a Data Breach, as an encrypted piece of hardware does not necessarily expose personal data; arguably meaning that no data breach has occurred.

CRM/D365E gives us the option to utilise a well-established feature within SQL Server to implement encryption for our data - Transparent Database Encryption (or TDE). Even better, it’s enabled by default. That being said, it is prudent for you to take a copy of the default encryption key or change it entirely if you haven’t done so already.

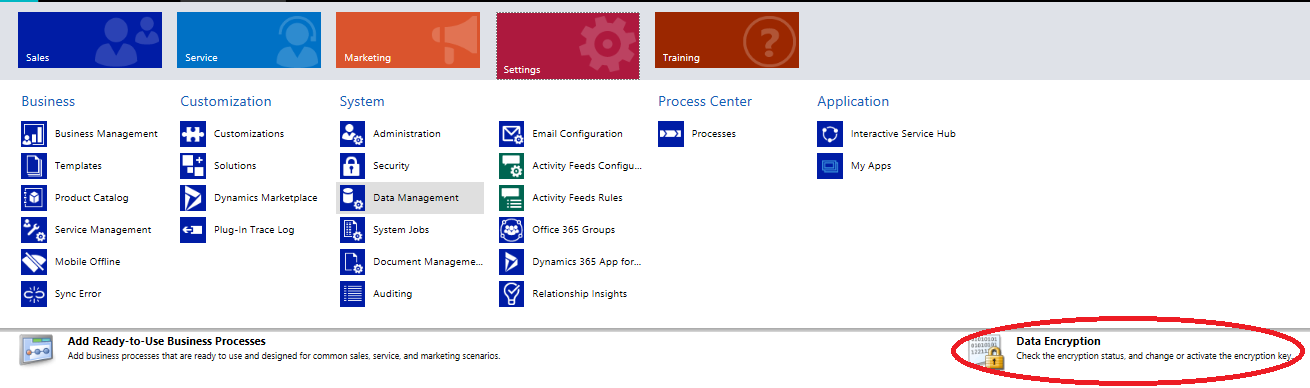

Doing either of the above is relatively straightforward. Navigate to Settings -> Data Management within the application and then click on the Data Encryption icon:

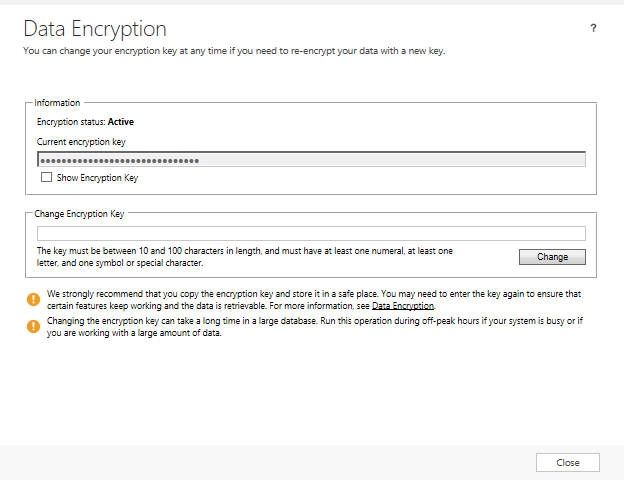

TheĀ Data Encryption pop-up window will appear, as indicated below:

From here you have two options at your disposal:

  • Use theĀ Show Encryption Key to allow you to copy and paste the key to your location of choice. Note that as outlined by Microsoft, the key may contain Unicode characters, leading to a potential a loss of data when using applications such as Notepad.
  • Generate a new key that meets the requirements set out above and then click onĀ Change.

In both cases, ensure that the encryption key is stored securely and segregated as far away as possible from your CRM/D365E deployment. Keep in mind as well that there are specific privileges that control if a user can access the above or even modify the encryption key in the first place. These privileges can be found on theĀ Core Records tab within a Security Role page:

It may be tempting, knowing that encryption is enabled by default, to put your feet up and not worry about it. Here’s why it’s important to securely hold/segregate your database encryption key and also to think carefully about which users in your organisation have full Administrative privileges on the application:

Let’s assume the following scenario: your on-premise CRM 2016 organisation has database encryption enabled and SQL Server is installed on the same machine, along with all database files. The database encryption key is saved within a .txt file on the same computer.

A rogue member of staff with full Administrative privileges on CRM or an attacker manages to gain access to this server, in the process taking your CRM organisations .mdf database file. They also manage to either take a copy of the .txt file containing the encryption key or the currently configured encryption key by accessing your CRM instance. This person now has the ability to both mount and access the database file without issue. Under GDPR, this would constitute a data breach, requiring your business to do the following as immediate steps:

  • Notify the supervisory body within your country within 72 hours of the breach occurringĀ (Article 33)
  • NotifyĀ every person whose personal data was stored in the database that a breach has occurred (Article 34)
  • Record the nature of the breach, the actual effect caused by it and all remedial steps taken to prevent the occurrence of a breach again in the future. All of this may be required by the supervisory body at any time (Article 35)

The fun does not stop there: depending on what processes your business had in place and, given the specific nature of the scenario, a fine may be more than likely. This is due to the clear steps that could have been taken to prevent the database from being so easily accessible. Having to explain this in front of senior executives of a business is not a prospect that any of us would particularly relish and could have been avoided had the following steps being implemented:

  • The rogue member of staff had been given a much more restrictive security role, that did not grant theĀ Manage Data Encryption key - Read privilege.
  • The SQL Server instance had been installed on a different server.
  • The database encryption key had been saved on a different server
  • The database encryption key had been saved in a password protected/encrypted file.

This list is by no means exhaustive, and there is ultimately no silver bullet when it comes to situations like this; however, you can manage your risk much more effectively and demonstrate to authorities like the ICO that you have taken reasonable steps by taking some of the appropriate steps highlighted above.

In next week’s post, we will take a look at the importance of Field Security Profiles and how they can be utilised to satisfy several of the key requirements of GDPR in a pinch!
